Description:

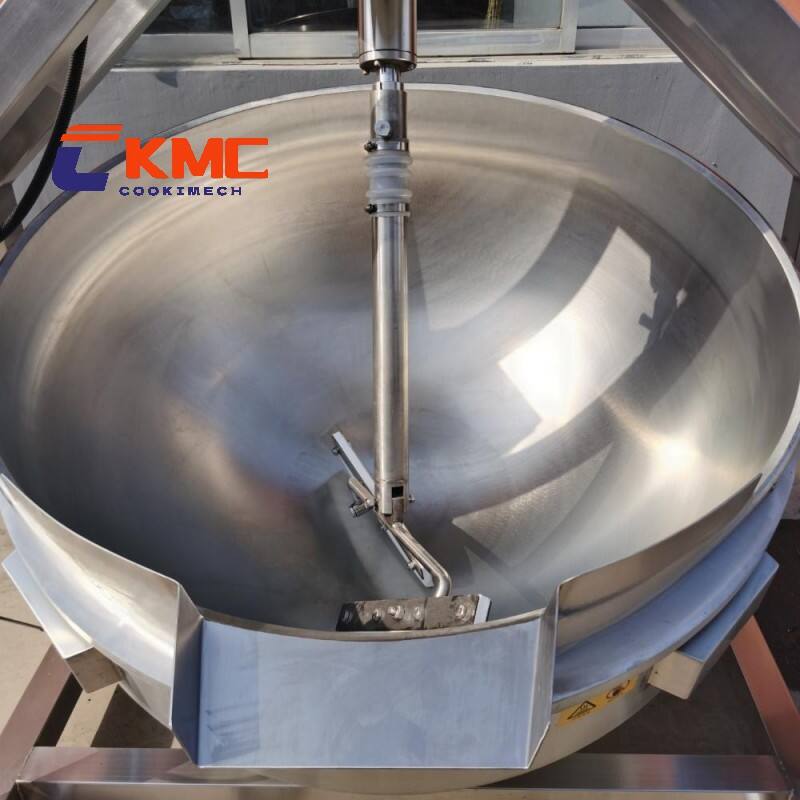

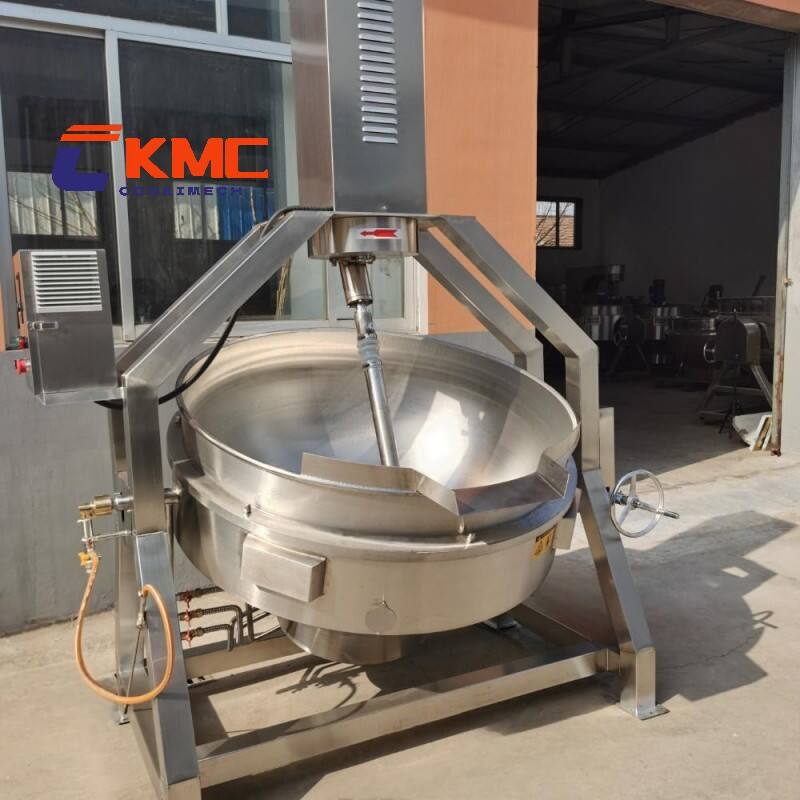

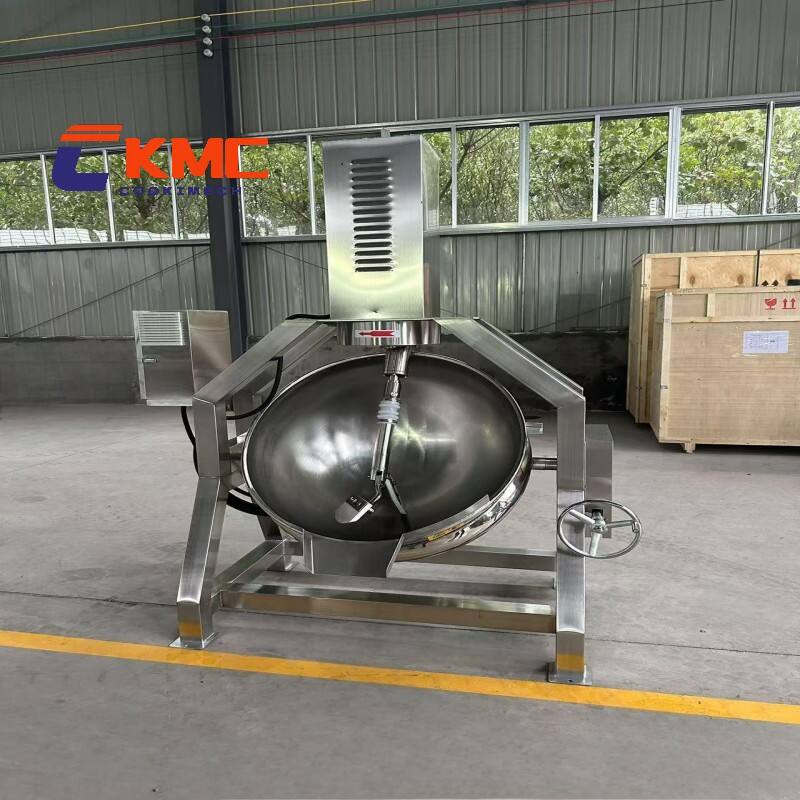

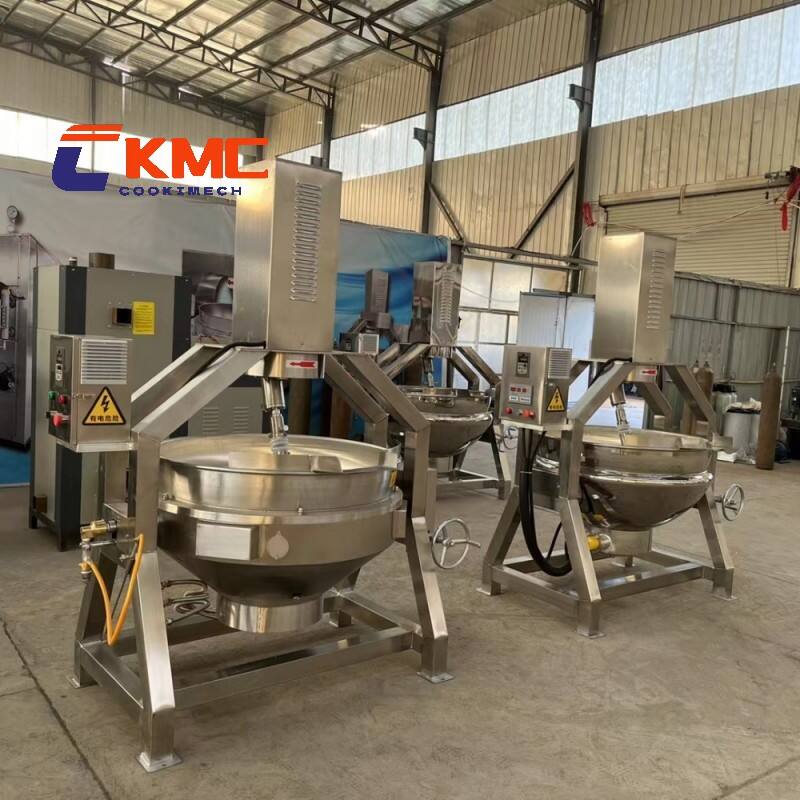

The semi-automatic planetary stirring jacketed kettle features a highly advanced stirring process. Instead of following a simple circular trajectory, it employs a more complex stirring motion, hence the name "planetary stirring jacketed kettle." The advantage of planetary stirring is that it allows for 360-degree, no-dead-angle mixing of the materials in the pot, preventing any part of the material from sticking to the pot and burning.
Advantages:
Planetary Mixing System
Zero dead-angle mixing technology handles high-viscosity materials
80% more uniform than manual mixing
Ensures consistent processing quality
Cost-Effective Design
Semi-automatic operation reduces material/component costs
Maintains high practicality compared to full-automatic systems
Premium Cooking Pot
Single-piece spun-cast 304 stainless steel construction
Non-stick, scorch-resistant surface
Enhances food safety while minimizing material waste
Technical parameters：
|
Volume |
diameter |
depth |
breadth |
height |
weight |
motor power |
Heating power |
Gas consumption |
|
100L |
800mm |
420mm |
1000mm |
1500mm |
260kg |
1.1kw |
12kw |
1kg/h |
|
200L |
900mm |
480mm |
1100mm |
1600mm |
290kg |
1.1kw |
24kw |
1.5kg/h |
|
300L |
1000mm |
540mm |
1150mm |
1650mm |
320kg |
1.5kw |
36kw |
2kg/h |
|
400L |
1100mm |
600mm |
1220mm |
1700mm |
360kg |
1.8kw |
36kw |
2.5kg/h |
|
500L |
1200mm |
650mm |
1270mm |
1750mm |
400kg |
2.2kw |
48kw |
3kg/h |
|
600L |
1300mm |
700mm |
1320mm |
1800mm |
450kg |
2.2kw |
48kw |
3.5kg/h |
