Description:

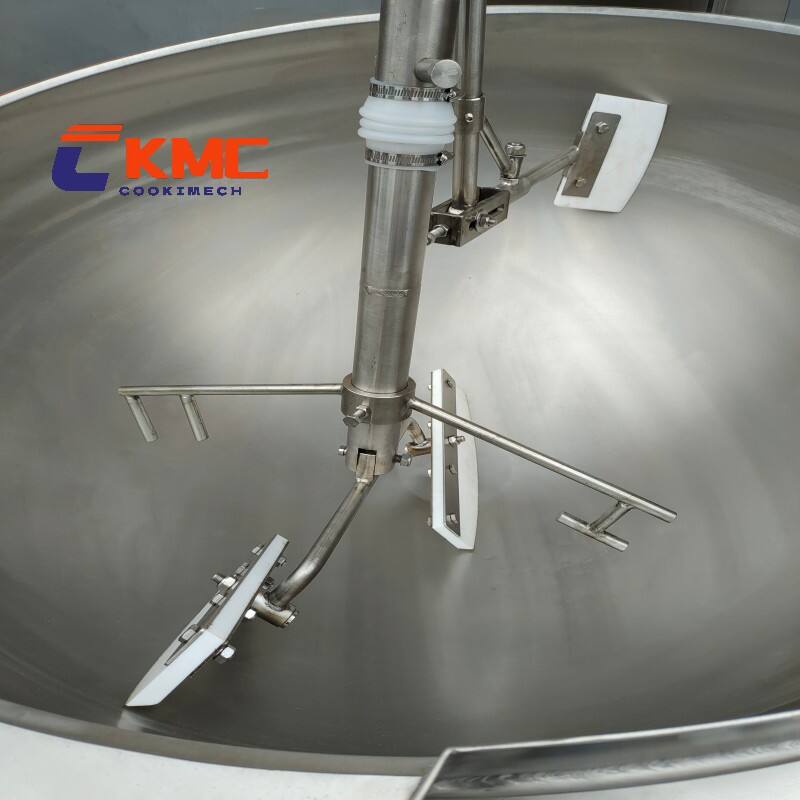

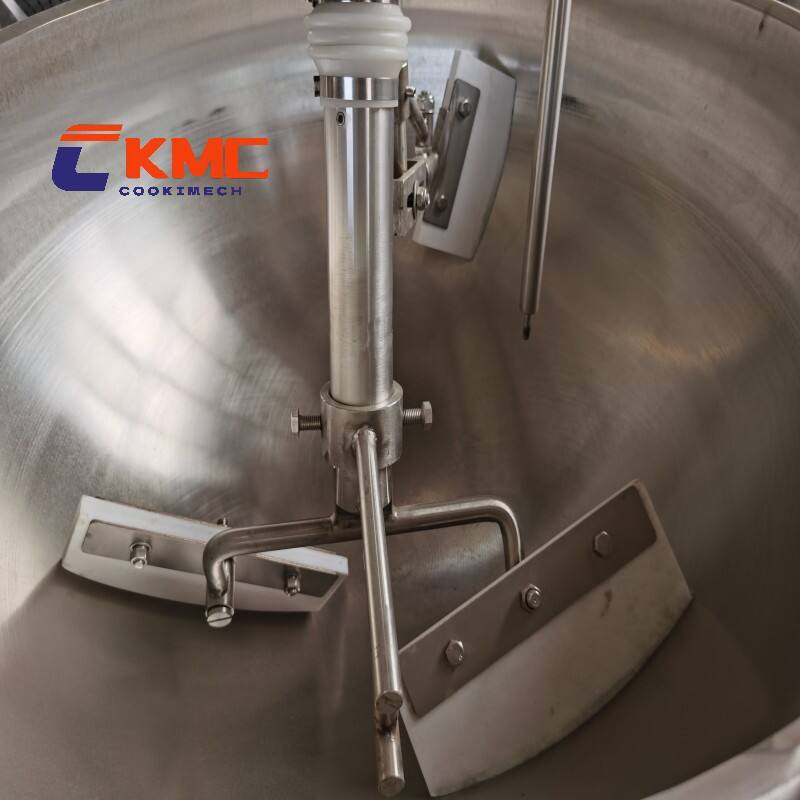

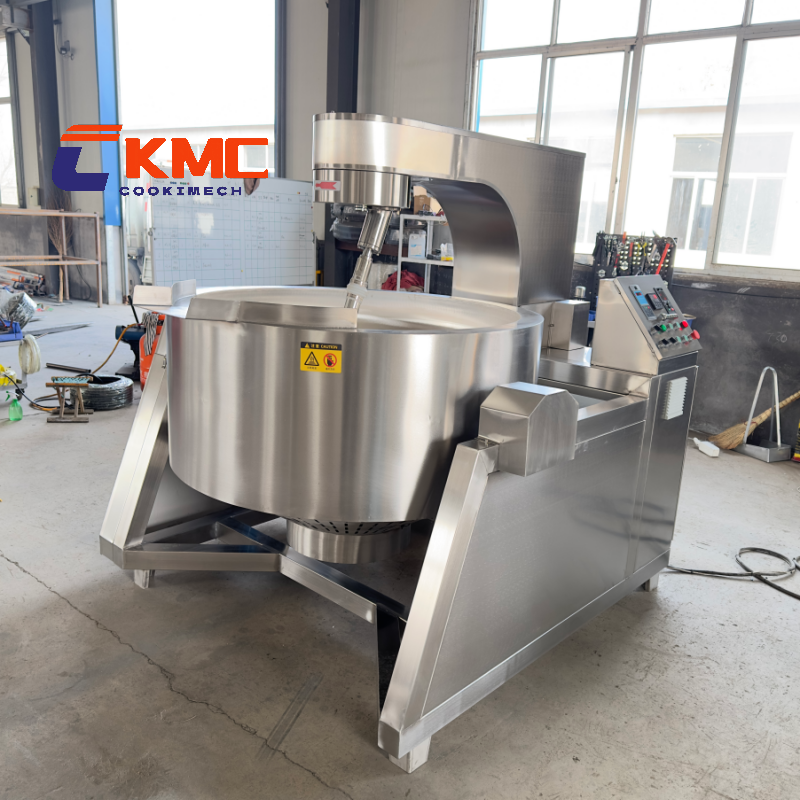

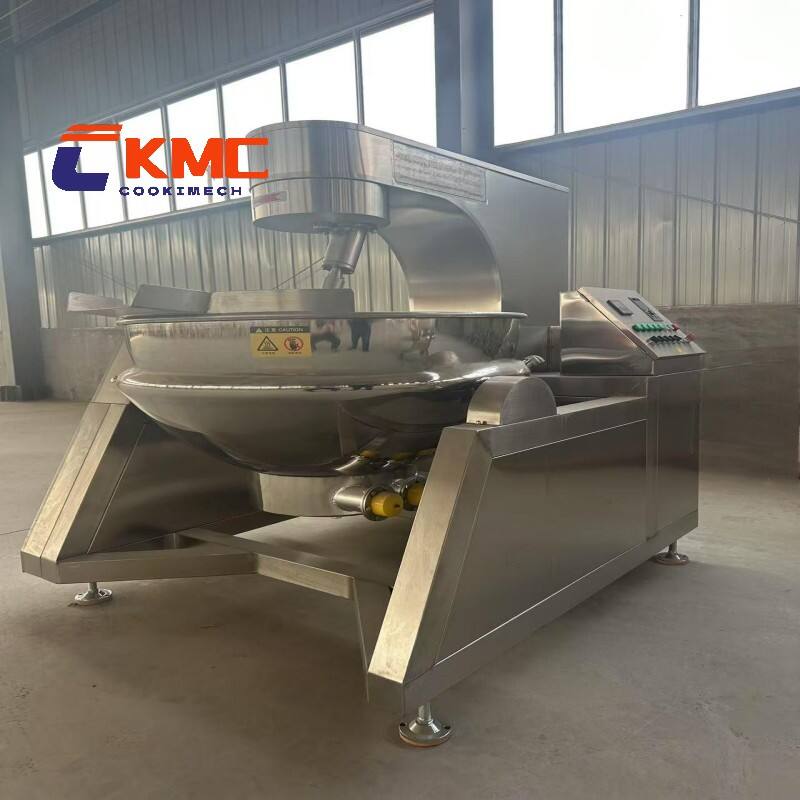

The planetary mixing jacketed kettle can be considered an upgraded version of the stirred jacketed kettle. its mixing action is not a simple circular trajectory but rather an upgraded mixing method with a relatively complex operating path, hence earning it the vivid nickname "planetary mixing jacketed kettle" The advantage of planetary mixing is that it can stir the materials in the kettle in a 360-degree manner without leaving any dead spots, thus preventing material from sticking to the kettle.The planetary mixing jacketed kettle is a relatively advanced equipment, so the manufacturing cost may be relatively high. Nevertheless, the technology is highly mature, and currently, it boasts a high utilization rate in many large.scale food processing plants.
Advantages:
Heating Methods: Multiple options available. Choose the most suitable based on local energy costs and supply, each with an optimized design.
Planetary Mixing: Ensures thorough blending of high-viscosity products with zero dead zones, achieving 80% more uniformity than manual mixing for consistent quality.
Automation: Fully eliminates manual intervention—simple button controls operate the entire system.
High-Strength Hydraulic Rod: Enables stable loading/unloading for larger batches, reducing production accidents to near zero.
Pot: Spun, one-piece cast 304 stainless steel construction. Non-stick, non-scorch design prevents food safety risks and minimizes waste.
Smart Control: Optional PLC system allows fully autonomous operation via pre-programmed settings for diverse products.
Technical parameters：
|
Volume |
Dimension(mm) |
Weight (kg) |
Stirring power(kw) |
Heating power(kw) |
Gas consumption(m³/h) |
|
100L |
1586*1473*1620 |
300 |
1.1 |
12-24 |
1 |
|
200L |
1662*1553*1670 |
350 |
1.5 |
24-32 |
1.5 |
|
300L |
1851*1665*1742 |
400 |
1.5 |
24-36 |
2 |
|
400L |
2011*1764*1760 |
500 |
1.8 |
36-48 |
2.5 |
|
500L |
2251*1900*1802 |
600 |
2.2 |
36-54 |
3 |
|
600L |
2461*2120*1882 |
700 |
2.2 |
48-60 |
3.5 |
