Description:

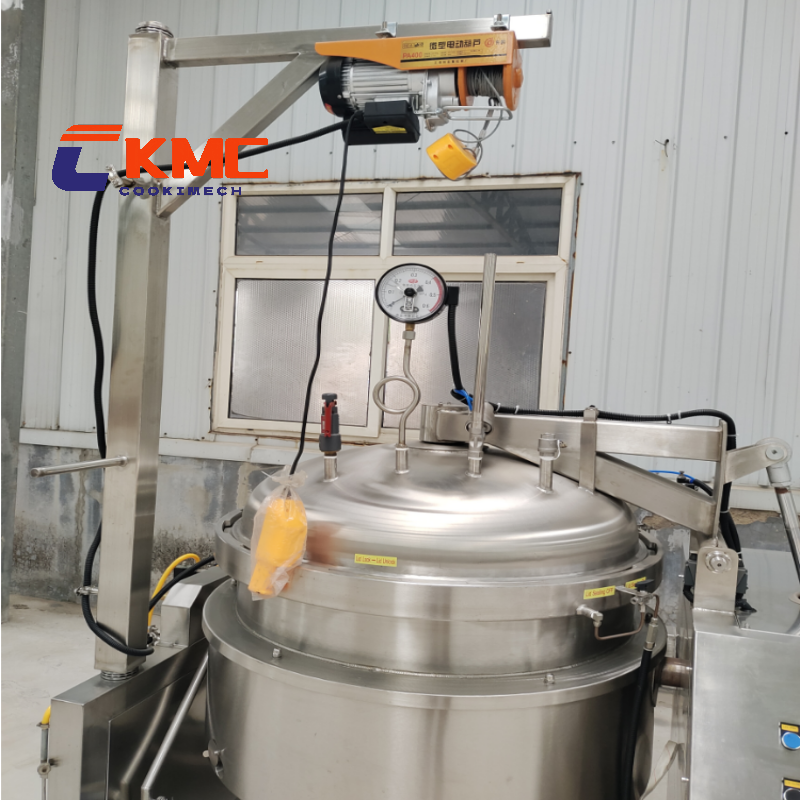

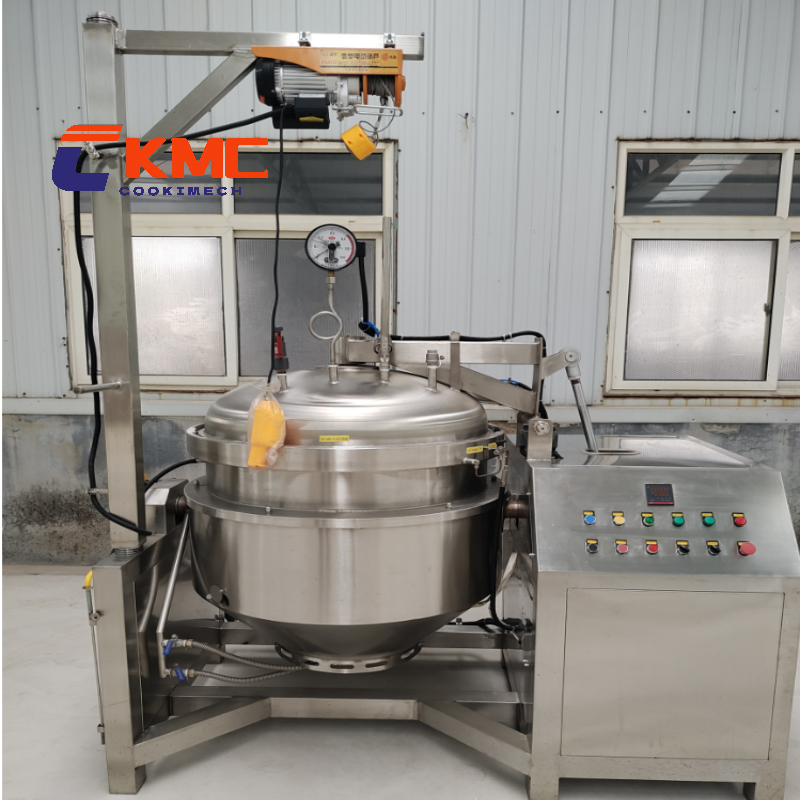

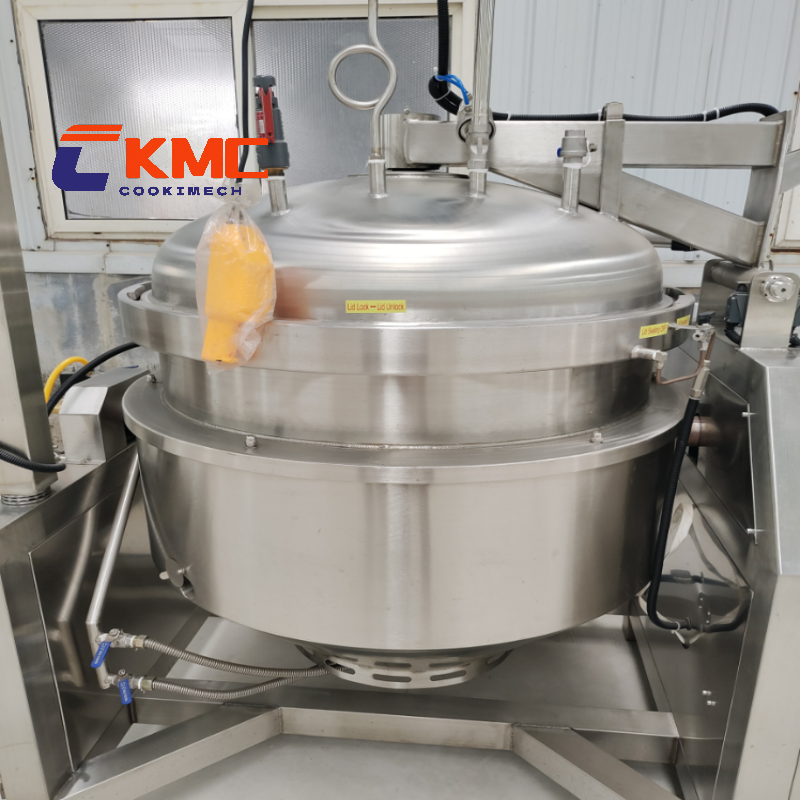

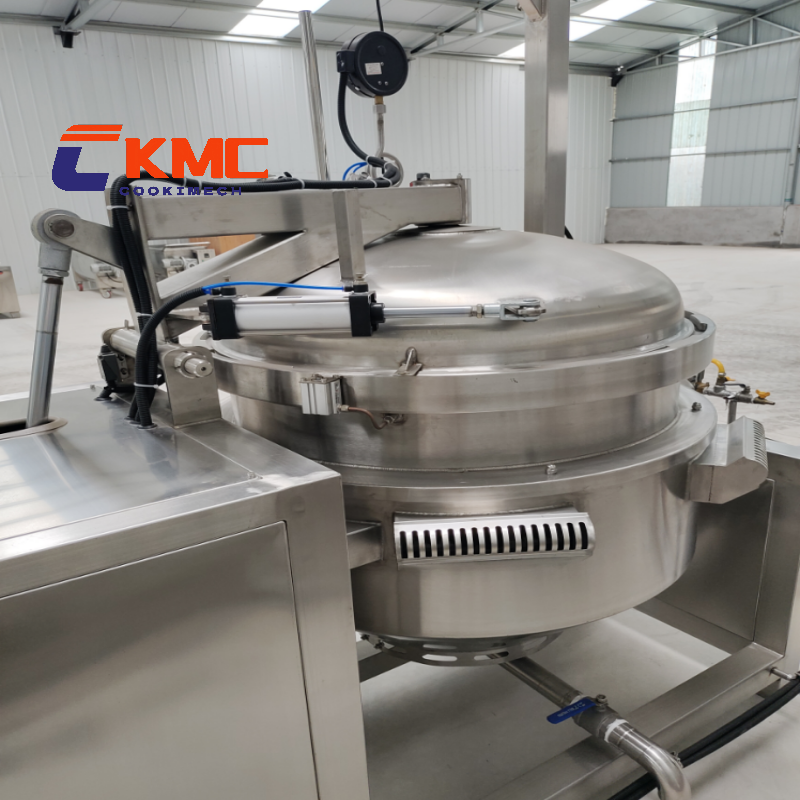

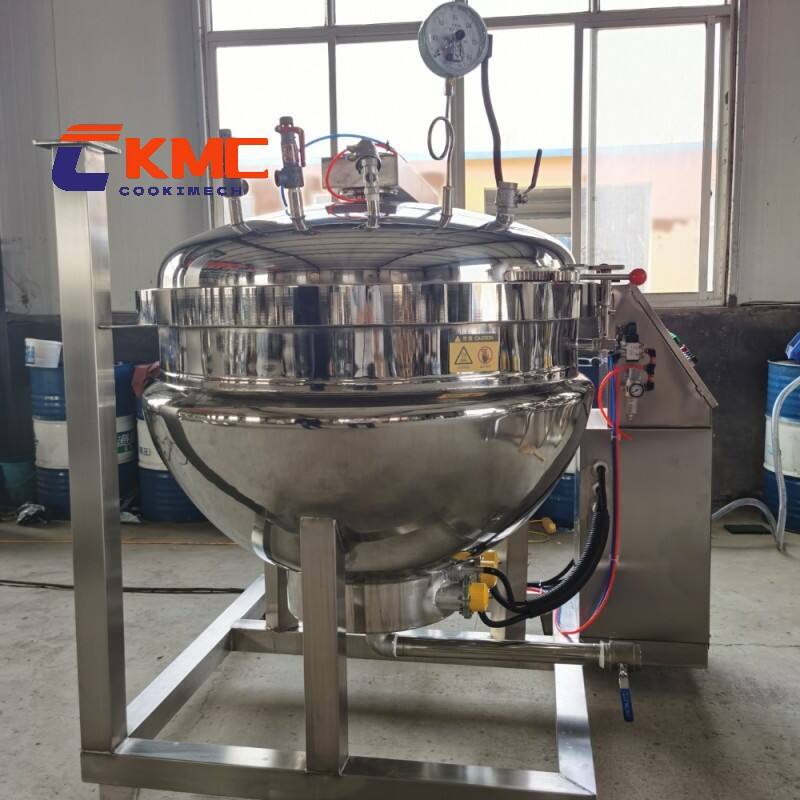

The high-pressure jacketed kettle is a multi-functional heating device widely used in the food processing, pharmaceutical, and chemical industries. It is primarily used for heating, boiling, mixing, and cooking various materials, especially those requiring high temperature and pressure environments.The high-pressure jacketed kettle heats the materials inside the kettle body using the heat transfer medium in the jacket. By increasing the pressure inside the kettle, the heating temperature can be significantly raised, accelerating the heating and cooking process. The agitation device ensures the materials are heated evenly, preventing sticking and localized overheating.It can be used for cooking porridge, boiling soup, steaming beans, making sauces, syrup preparation,or for the extraction, concentration, and sterilization of medicinal materials. The high-pressure jacketed kettle can be equipped with various accessories designed to meet different process requirements and production needs.
Advantages:
Certification: Our factory is certified for pressure vessel production and specializes in high-temperature sterilization autoclaves, ensuring superior sealing and safety in our pressure cookers.
Temperature Control: Leveraging autoclave expertise, we achieve precise electronic control of temperature and pressure inside sterilization cookers.
Pot: One-piece spun-cast 304 stainless steel construction—non-stick, scorch-proof, enhancing food safety while reducing waste.
Technical parameters：
|
Volume |
diameter |
depth |
breadth |
height |
weight |
Heating power |
Gas consumption |
Steam consumption |
|
100L |
720mm |
480mm |
1120mm |
1480mm |
180kg |
12kw |
1kg/h |
50kg/h |
|
200L |
860mm |
540mm |
1250mm |
1520mm |
220kg |
18kw |
1.5kg/h |
80kg/h |
|
300L |
950mm |
600mm |
1300mm |
1580mm |
260kg |
24kw |
2kg/h |
120kg/h |
|
400L |
1030mm |
660mm |
1350mm |
1650mm |
300kg |
32kw |
2.5kg/h |
150kg/h |
|
500L |
1120mm |
720mm |
1420mm |
1700mm |
350kg |
36kw |
3kg/h |
180kg/h |
