Description:
The working principle of a steam generator is to utilize fuel or other energy sources to generate heat through internal reactions,thereby heating water to produce steam. Additionally, the steam generator is equipped with a circulation system, which allows the steam to condense back into water upon cooling and re-enter the system for reheating, ensuring efficient resource utilization.
Advantages:
1、Remote operation is available, allowing you to check the equipment's operating status at any time.
2、The three-electrode water level sensor will trigger an alarm if any electrode malfunctions, ensuring safe operation
3、High-quality water pump with a full copper core, ensuring reliable quality and safe operation.
4、Automatic pressure relief in case of excessive pressure, ensuring user safety.

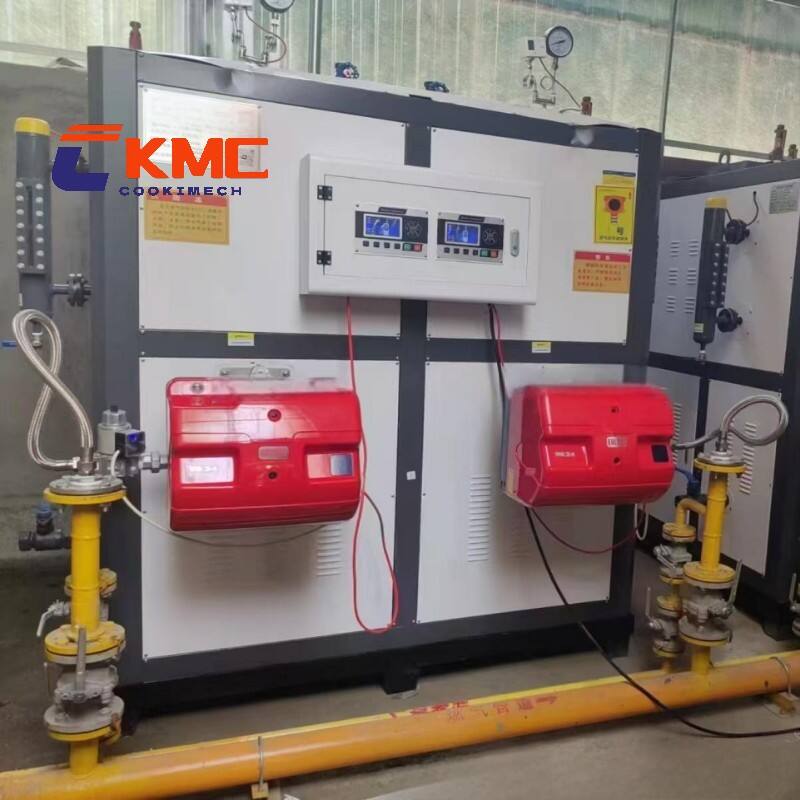

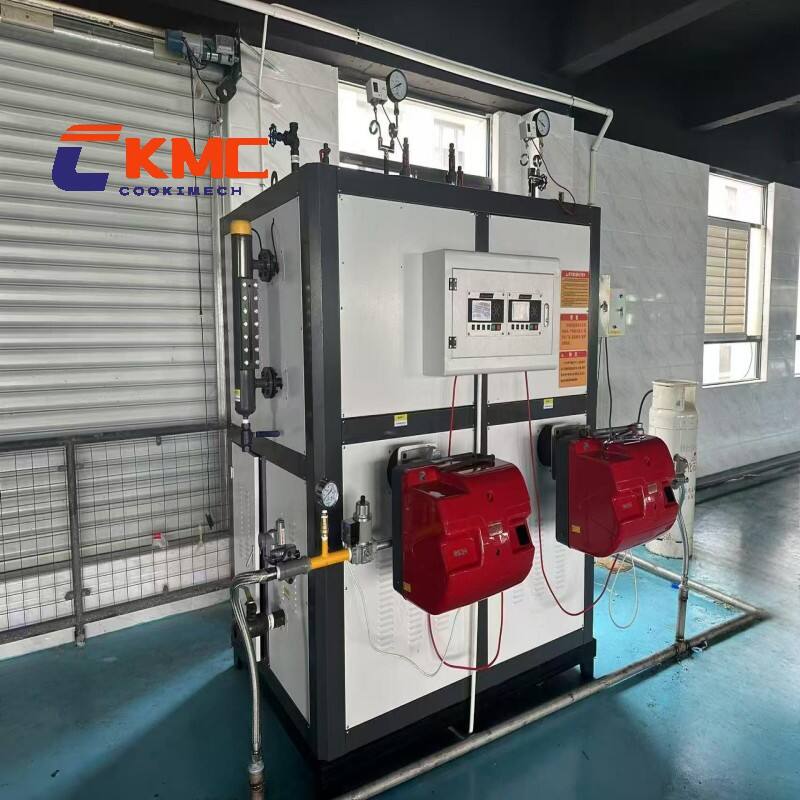

Our company's burners use original imported Riello burners from Italy, ensuring stable equipment, high thermal efficiency, and low
failure rates
5、The pressure gauge and pressure controller provide dual protection, automatically shutting down when the set pressure is reached
6、and automatically resuming when it falls below the set pressure.
Technical parameters：
|
Rated Heat Output (KG/H) |
Rated Pressure (MPA) |
Rated Voltage |
Package Dimensions |
|
100KG |
0.7 |
Customized according to customer requirements, defaulting to 220V |
1350*800*1550mm |
|
200KG |
0.7 |
|
1500*900*1900mm |
|
300KG |
0.7 |
|
1700*1200*2300mm |
|
600KG |
0.7 |
|
2200*1100*2150mm |
