Description：
The cooling storage tank is suitable for lowering the temperature of various liquid materials, with a working temperature range of 2°C to 40°C. It mainly consists of the tank body, agitator, refrigeration unit, and electrical control system. The tank is made entirely of SUS304 stainless steel and is precisely polished, making it resistant to corrosion, easy to clean, and not prone to residue buildup. The insulation layer is filled with polyurethane foam, which has a low thermal conductivity, offering excellent insulation performance while being lightweight.
Advantages:
Refrigerant: R404A (globally approved)
Cooling Performance: Large cooling surface area reduces chilling time and improves efficiency
Hygienic Design: Seamless interior with mirror-polished surfaces minimizes residue and prevents bacterial growth
Tank Construction: 3mm (inner) + 2mm (middle) + 1.5mm (outer) composite walls for industry-leading durability
Energy Efficiency: Integrated insulation layer reduces energy consumption by 30%+
Safety Features: Equipped with level indicators and vent ports to prevent operational hazards
Manufacturing Expertise:
Full production line compatibility with plug-and-play installation
Turnkey solutions including technical consultation and after-sales support
Customizable for both standalone units and integrated systems

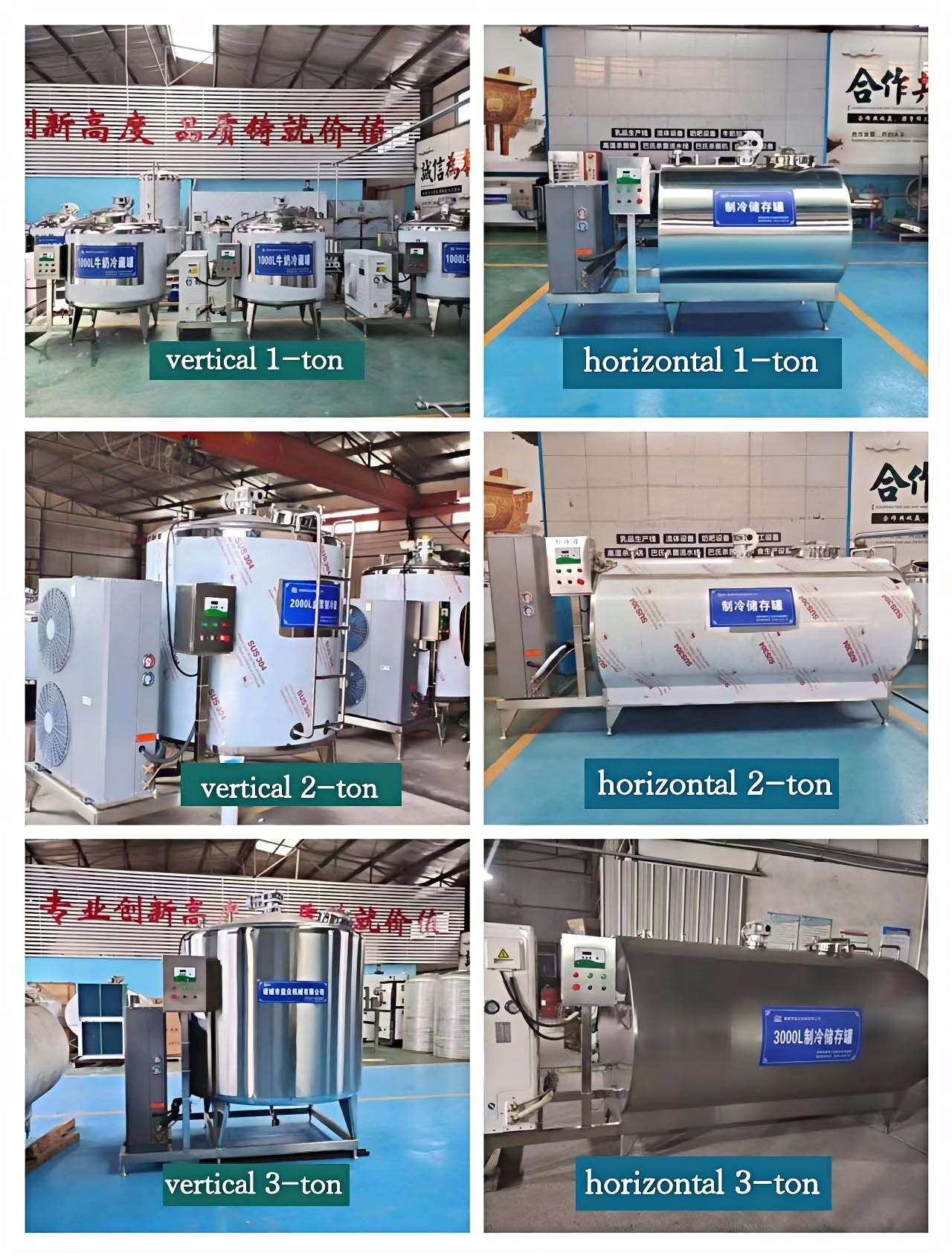

Technical Parameters:
|
Capacity |
Dimension(vertical) |
unit power |
total power |
mixer |
|
100L |
1350*880*1250 |
2P/unit |
2KW |
0.55kw |
|
200L |
1550*1000*1350 |
3P/unit |
2KW |
0.75KW |
|

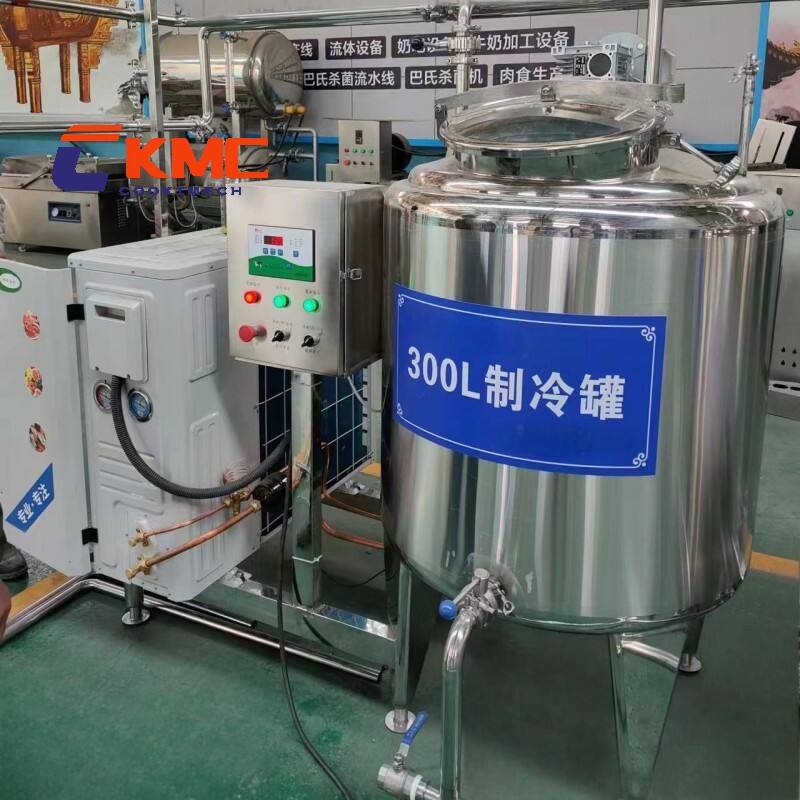

300L |
1700*900*1550 |
3P/unit |
2.6kw |
0.75KW |
|
500L |
1700*1100*1950 |
3P*1unit |
2.6kw |
0.75KW |
|
1000L |
2250*1400*2200 |
3P*1unit |
2.6kw |
0.75KW |
|

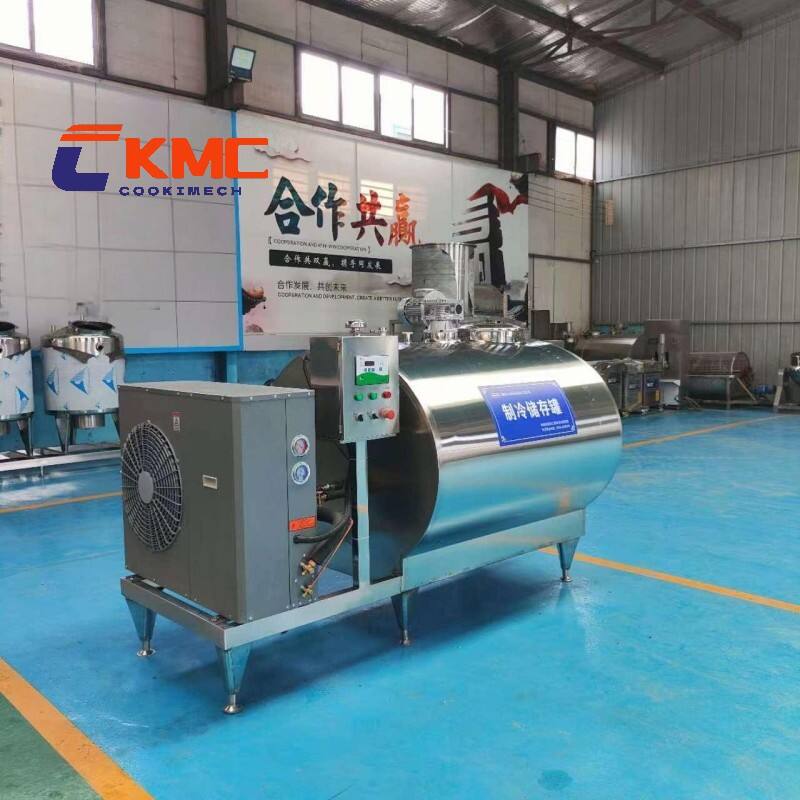

capacity |
Dimension(horizontal) |
unit power |
total power |
mixer |
|

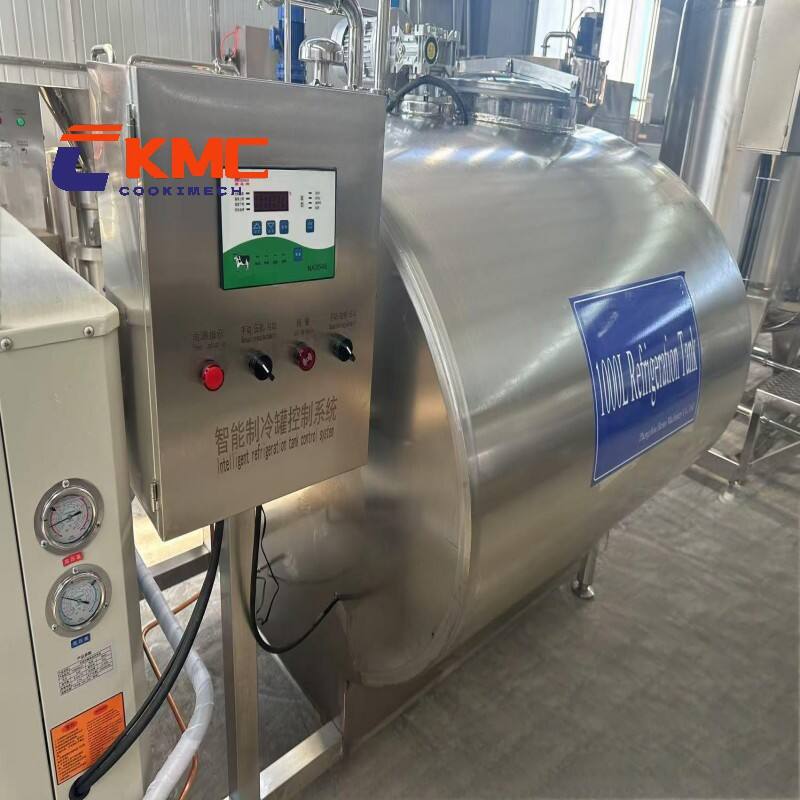

1000L |
2550*1550*1550 |
3P*1unit |
2.6kw |
0.75KW |
|
2000L |
3150*1800*1700 |
5P*1unit |
4.5kw |
0.75KW |
|
3000L |
3660*1900*1800 |
5P*1unit |
5.25 |
0.64kw |
|

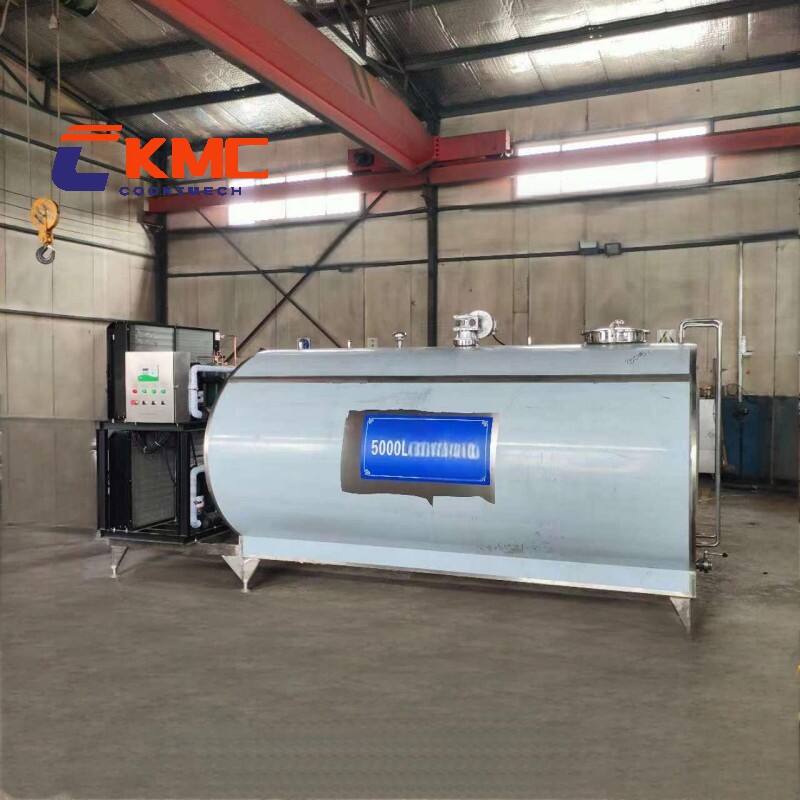

5000L |
4580*2200*2100 |
6P*2unit |
10.5kw |
1.1KW |
