Description:

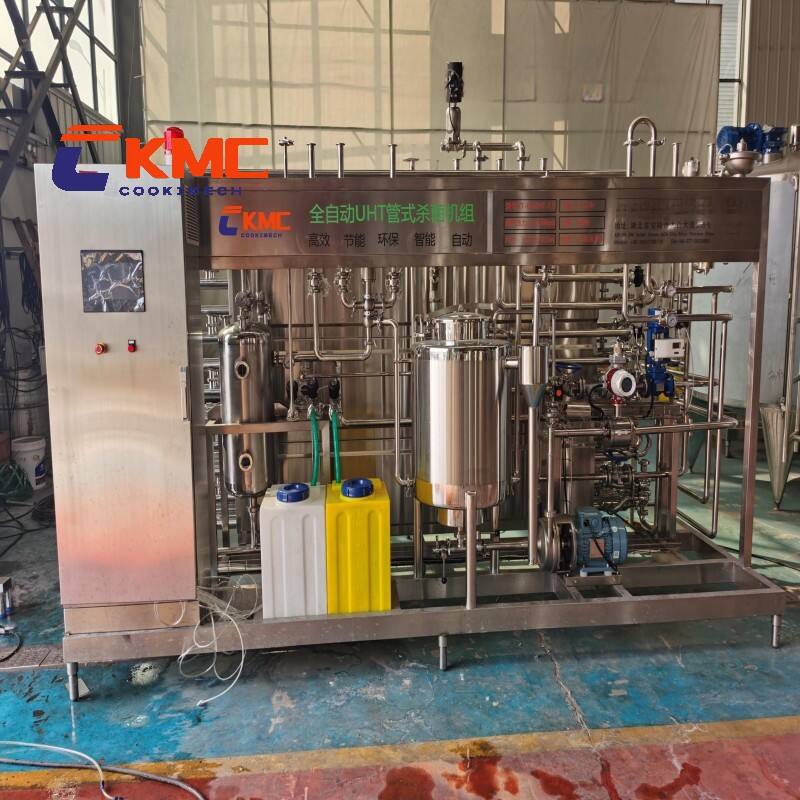

The UHT (Ultra-High Temperature) Instant Sterilizer is widely used for the sterilization of milk, fruit juice, tea beverages, and other products. This ultra-high temperature sterilizer integrates heating, sterilization, cooling, and heat recovery into one system. A touch screen displays real-time production data online. This equipment is suitable for continuous sterilization of fruit
and vegetable juice, tea beverages, dairy drinks, or similar materials. It enables ultra-high temperature instant sterilization and rapid pasteurization within a short period, ensuring that the nutrients in the material are not destroyed or lost, and the product color remains unchanged.

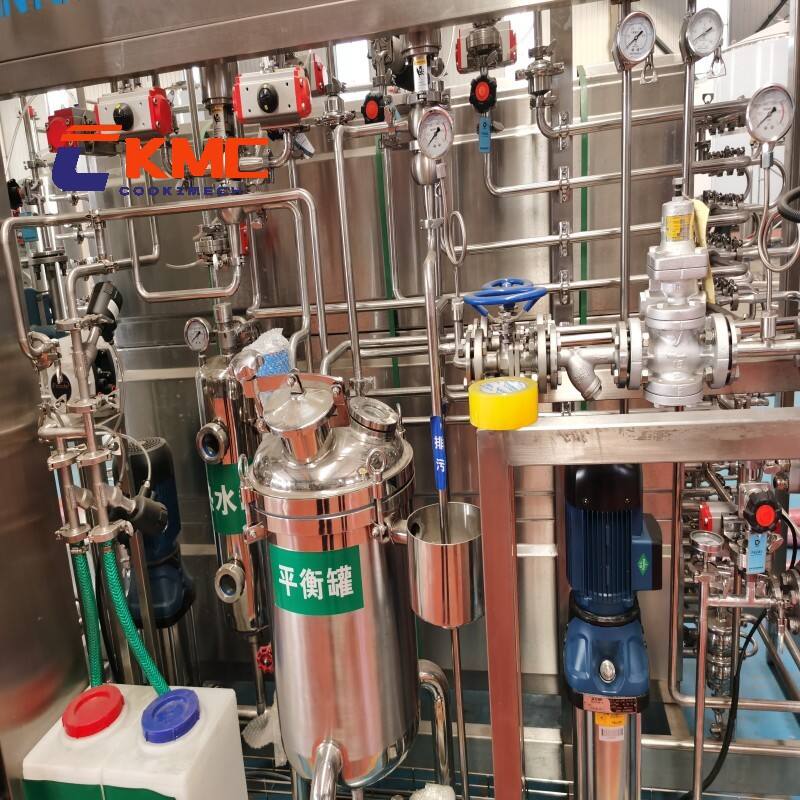

The UHT sterilizer consists of a heat recovery section for hot and cold materials, a preheating section, a sterilization and heat preservation section, and a cooling section. The entire sterilization process is fully automated, allowing flexible sterilization temperature settings on the human-machine interface. The temperature fluctuation during production must not exceed 0.5℃. It is equipped with a multi functional pressure tank, which buffers materials and recirculating materials during production and can be used as a CIP cleaning tank after production.
Advantages:
All pipelines that come into contact with food are made of 316 stainless steel, ensuring durability and long service life.
Equipped with a four-stage plate heat exchanger for excellent heat transfer performance and precise temperature control.
All electronic components are sourced from top international brands. The PLC control system is simple to operate and highly efficient.
Professional English installation and operation videos are provided, allowing users to complete installation independently without on-site support.
With extensive industry experience, we offer customized sterilization solutions for various products, with adjustable temperature settings.
The system features high-level automatic CIP cleaning, low residue, and meets stringent food safety and hygiene standards.
Compact pipeline arrangement ensures high flow efficiency, excellent heat exchange performance, and significant energy savings.
Technical parameters：
|
Production capacity (T/H) |
Steam pressure (BAR) |
Steam consumption (KG/H) |
power (KW) |
Dimensions (L×W×H) |
Weight (KG) |
Pipe diameter |
||
|
|
|
|
|
|
|
Materials |
steam |
medium |
|
1 |
6.0 |
40 |
4.0 |
3.3*0.9*1.8 |
1960 |
25 |
DN25 |
25 |
|
2 |
6.0 |
80 |
6.0 |
4.5*1.8*2.0 |
2160 |
38 |
DN25 |
38 |
|
3 |
6.0 |
120 |
6.0 |
4.5*1.8*2.0 |
2420 |
38 |
DN25 |
38 |
|
5 |
6.0 |
200 |
7.0 |
4.5*2.0*2.0 |
2940 |
38 |
DN32 |
38 |
