Description:

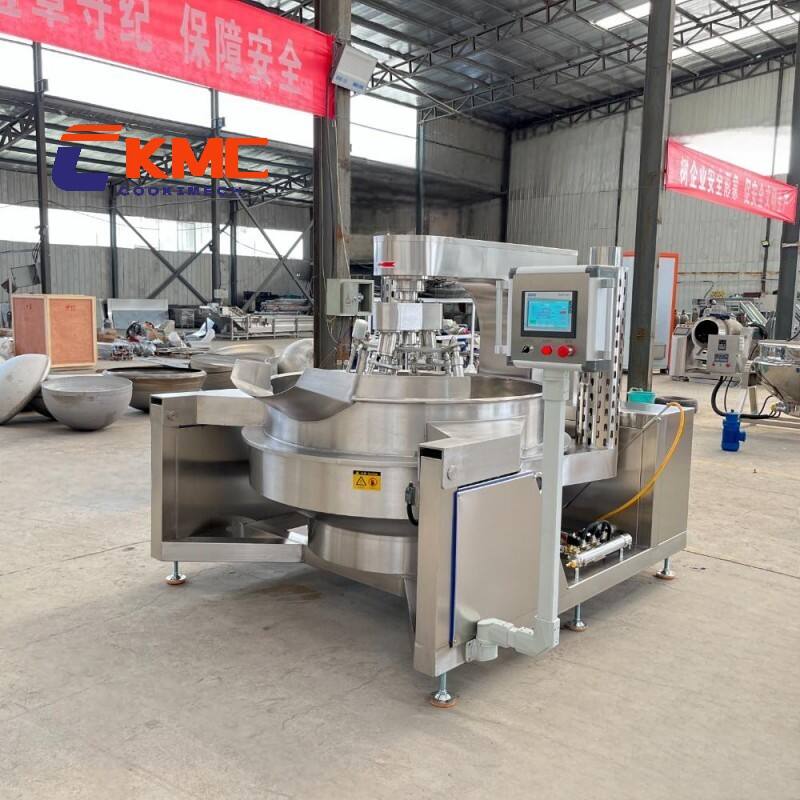

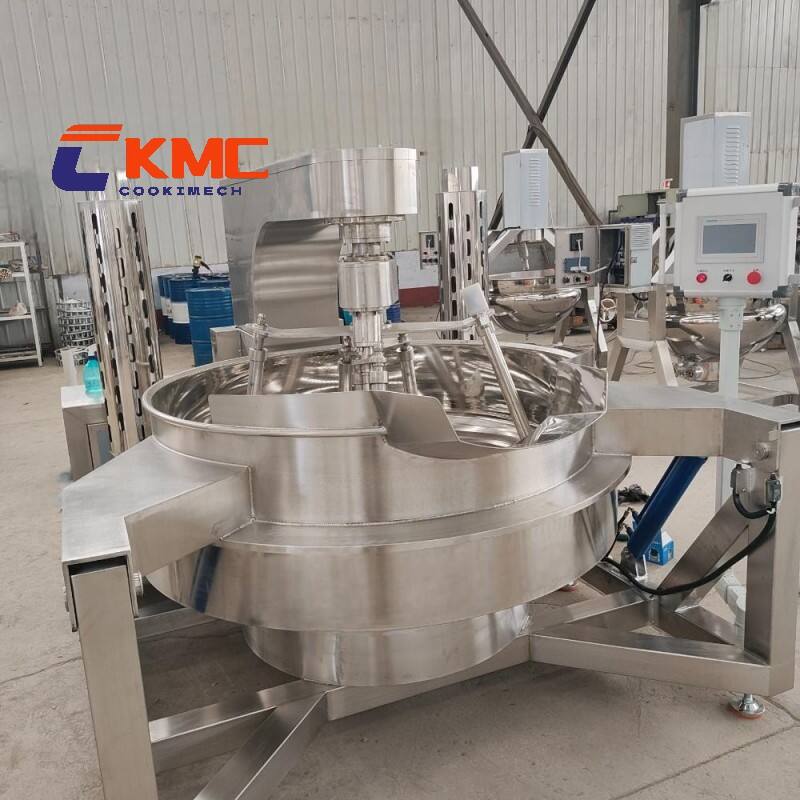

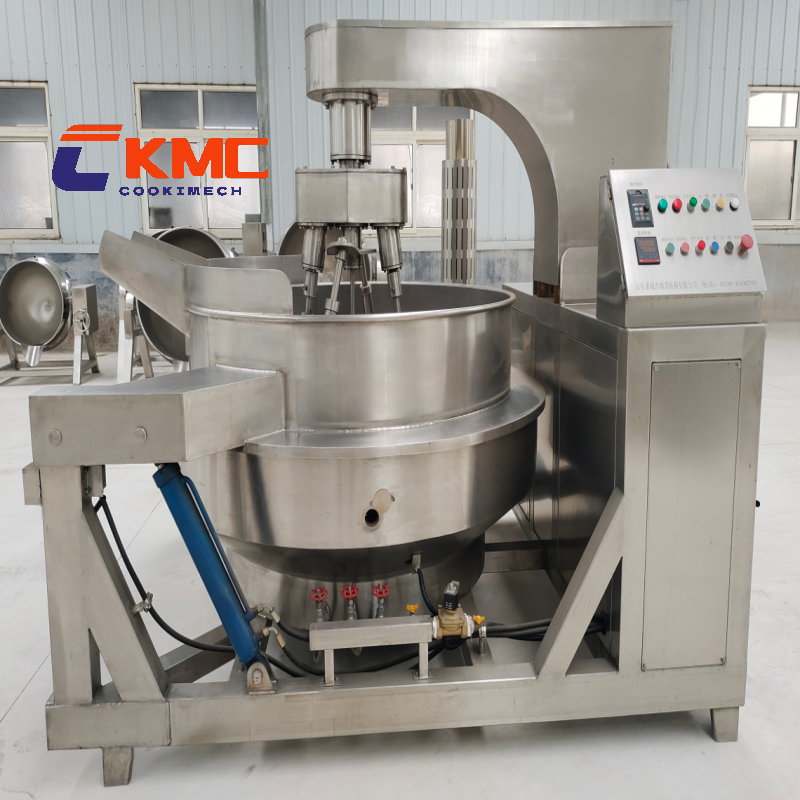

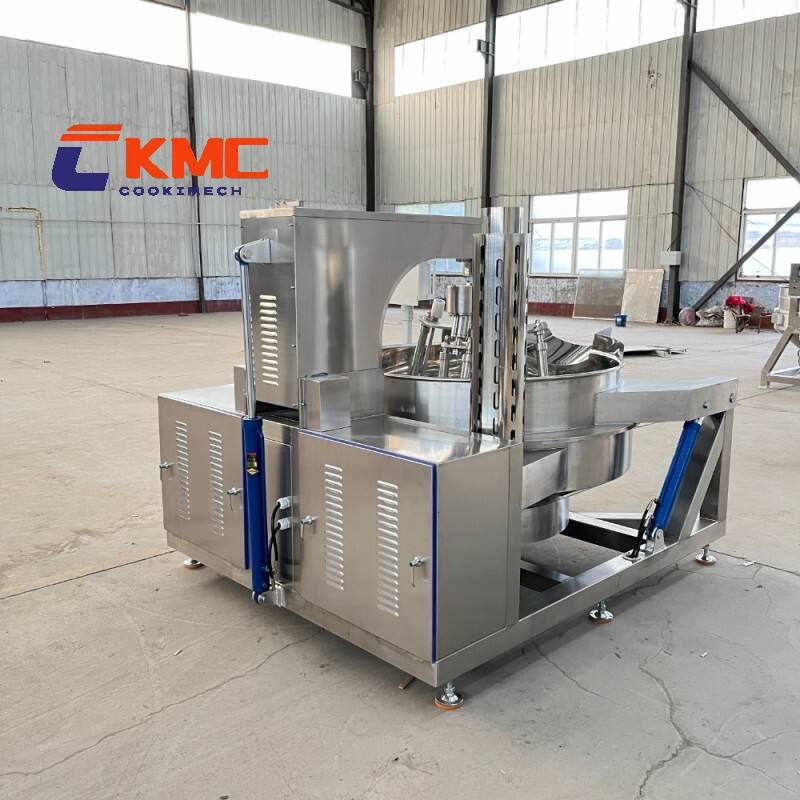

The multi-claw planetary frying pan is a frying pan equipped with multiple stirring claws, inspired by the planetary gear transmission system. The rotating motion of the multiple stirring claws ensures uniform frying of materials, avoiding the issues of material sticking and uneven heating commonly found in traditional frying pans. It is an efficient and energy-saving frying device widely used in the food processing industry. It is particularly suitable for frying various products such as nuts, sauces, meats, and vegetables.The multi-claw planetary frying pan offers uniform heating, energy efficiency, automated control, versatility for various materials, and easy cleaning.
Advantages:

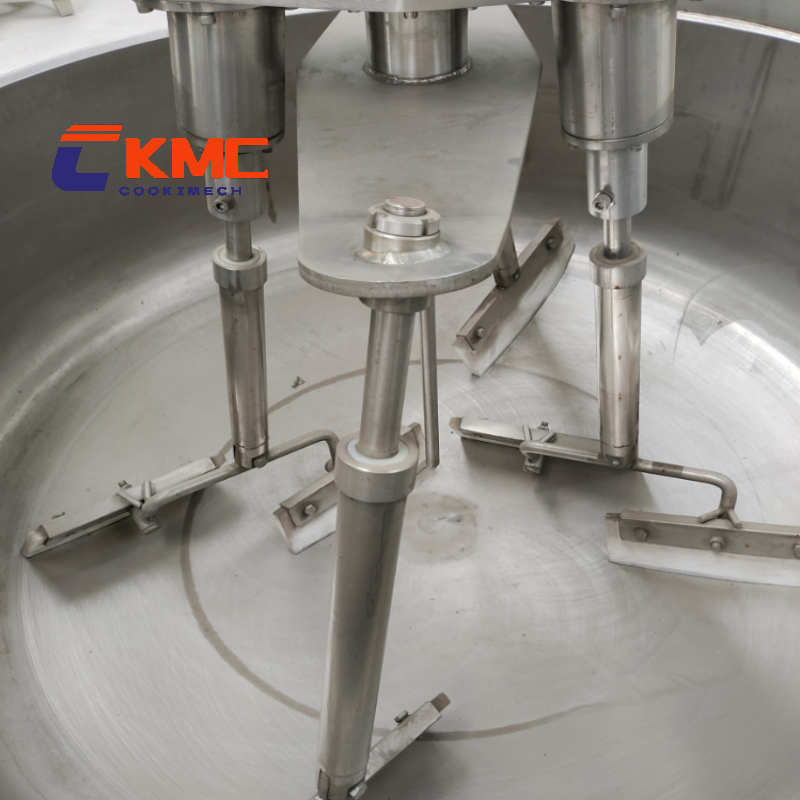

Planetary Mixing: Handles high-viscosity materials with zero dead-angle mixing, achieving 80% more uniformity than manual mixing for guaranteed product quality.
Flat-Bottom Design: Maximizes evaporation surface area, enabling large-batch processing without compromising production efficiency.
High-Strength Hydraulic Rod: Ensures stable loading/unloading for heavy-duty operations, reducing production accidents to near-zero probability.
Smart Automation: Optional PLC system enables fully autonomous operation through pre-programmed settings for diverse product processing.
Technical parameters：
|
Volume |
pot diameter |
boundary dimension |
weight |
motor power |
|
600L |
1200mm |
2300*2100*1750(mm) |
650kg |
3KW |
|
800L |
1400mm |
2450*2250*1800(mm) |
750kg |
4KW |
|
1200L |
1700mm |
2750*2450*1860(mm) |
900kg |
5.5KW |
