Description:

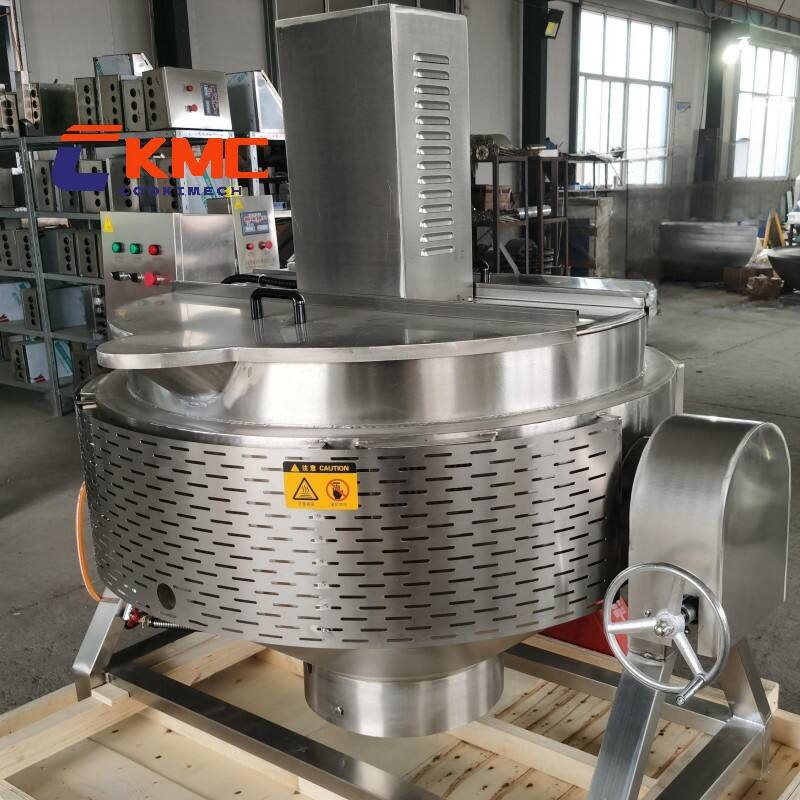

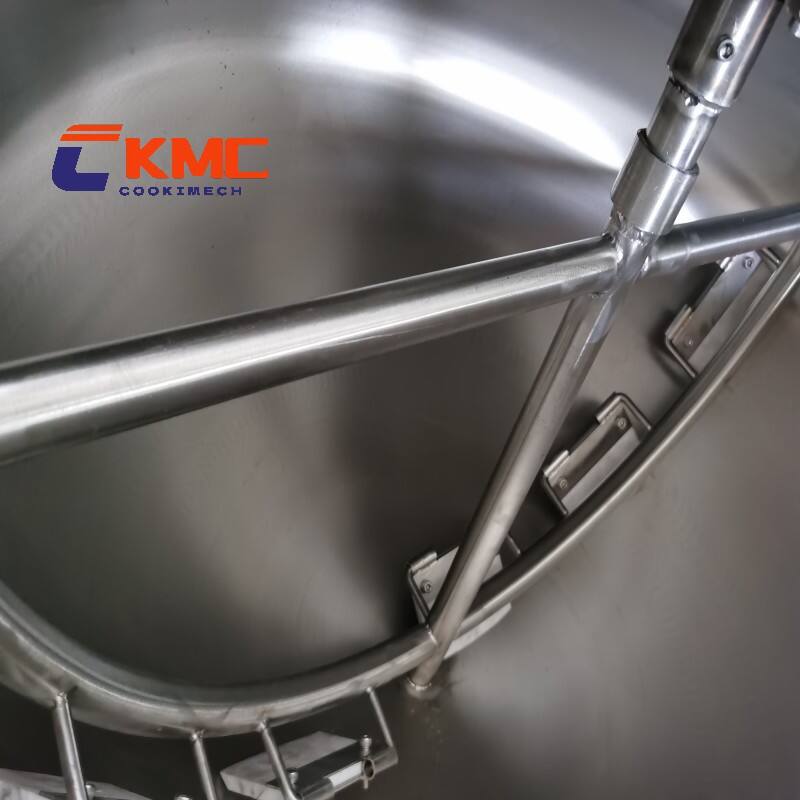

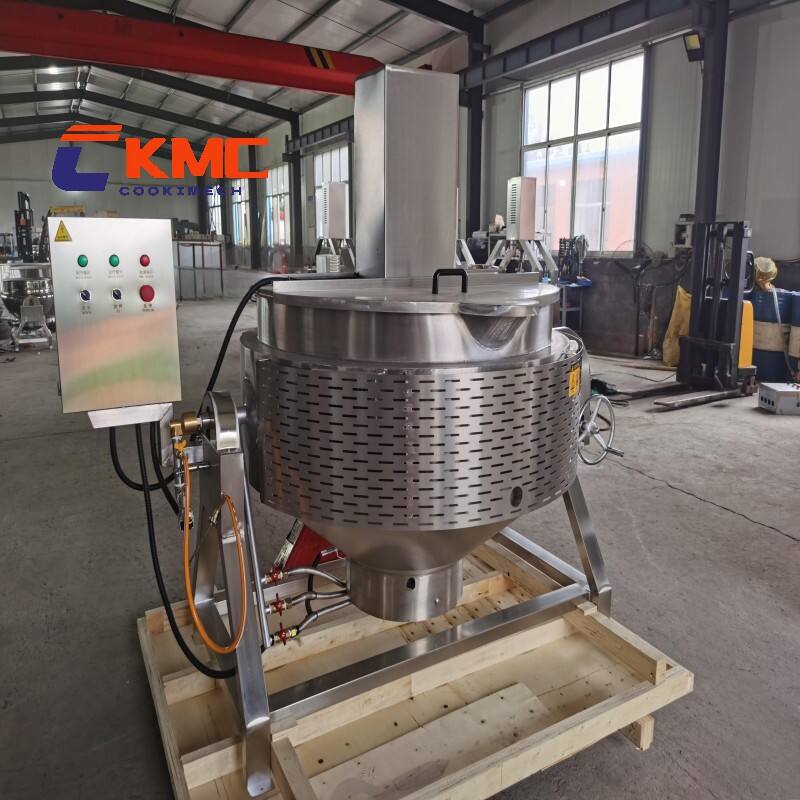

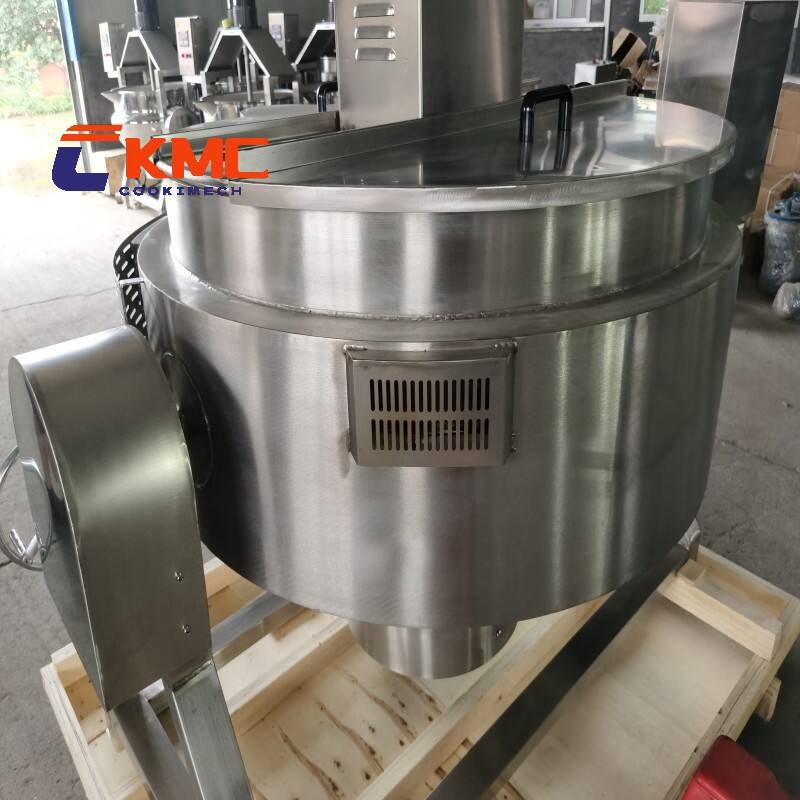

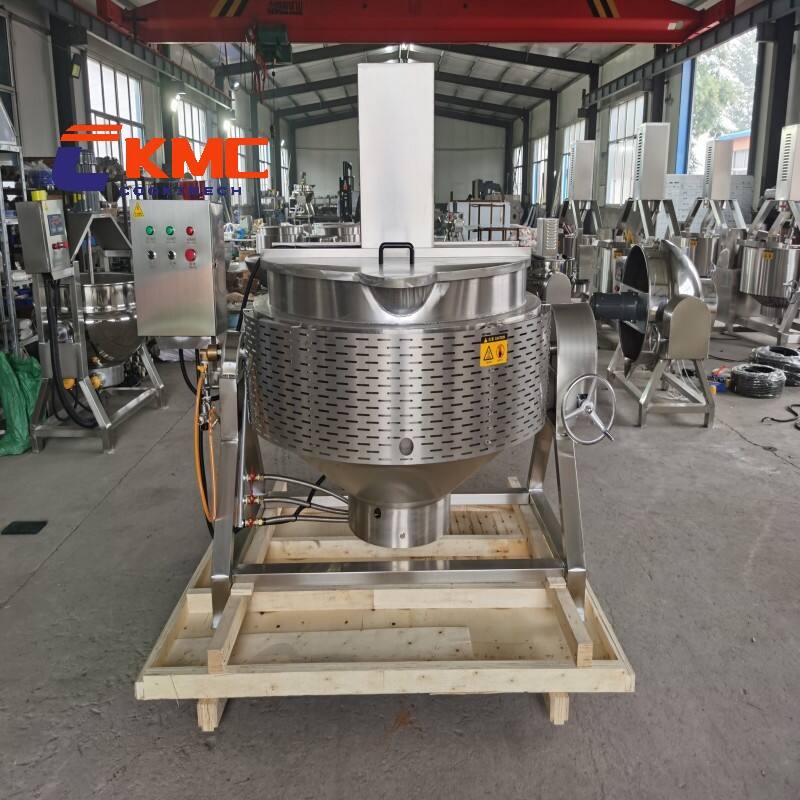

The gas-fired agitated tilting jacketed kettle is an efficient industrial cooking system featuring direct gas heating for rapid temperature rise and a trible-walled design for uniform heat distribution. Its integrated agitator ensures consistent mixing while preventing material scorching, and the tilting mechanism allows complete discharge of contents. Constructed with food-grade stainless steel, this versatile equipment is ideal for processing sauces, soups, jams, and pharmaceutical extracts where precise temperature control and mixing are required. The design accommodates various production scales and can be customized with automation features for improved efficiency. Suitable for food processing plants, commercial kitchens, and pharmaceutical facilities, it offers reliable performance for batch cooking applications requiring controlled heating and mixing of viscous materials.
Advantages:
Insulation Layer: Improves energy efficiency, reduces fuel costs, and enhances operator safety.
Material Thickness: 4mm inner + 3mm outer wall construction for long-lasting durability.
Ring Gas Burner: Fast heating, larger heating area, prevents localized overheating, and extends machine lifespan.
Pot: One-piece spun-cast 304 stainless steel, non-stick and scorch-resistant, ensuring food safety and minimizing waste.
Custom Options: Adjustable mixing speed (no extra cost), with add-ons like frequency converters, auto-ignition, and wireless temperature control.
Technical parameters：
|
Capacity |
Diameter |
Depth |
Breadth |
Height |
Weight |
Motor power |
Gas consumption |
|
100L |
720mm |
480mm |
1120mm |
1480mm |
130kg |
0.75kw |
1.5kg/h |
|
200L |
860mm |
540mm |
1250mm |
1520mm |
150kg |
1.1kw |
2kg/h |
|
300L |
950mm |
600mm |
1300mm |
1580mm |
180kg |
1.1kw |
2.5kg/h |
|
400L |
1030mm |
660mm |
1350mm |
1650mm |
220kg |
1.5kw |
3kg/h |
|
500L |
1120mm |
720mm |
1420mm |
1700mm |
260kg |
2.2kw |
3.5kg/h |
